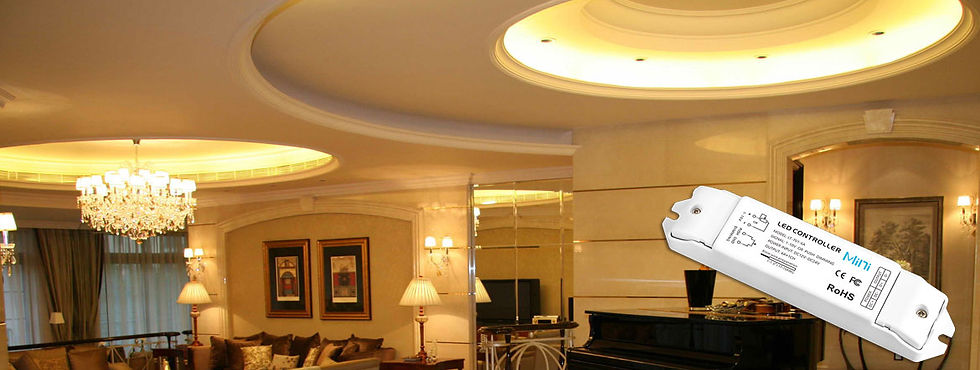

LT-701-6A      CV  0-10V, 1-10V  DIMMING  DRIVER

  • Input Signal

  • Input Voltage

  • Max Load Current

  • Max Output Power

  • Dimming Range

  • Working Temperature

  • Dimension

  • Package Size

  • Weight (G.W)

0 ~ 10V, 1 ~ 10V, 10V PWM, Resistor or Push Button

DC12V ~ DC24V

6A × 1CH    Max 6A

72W / 144W (12V / 24V)

0 ~ 100%

-30℃ ~ 55℃

L135 × W30 × H20mm

L140 × W34 × H23mm

65g
